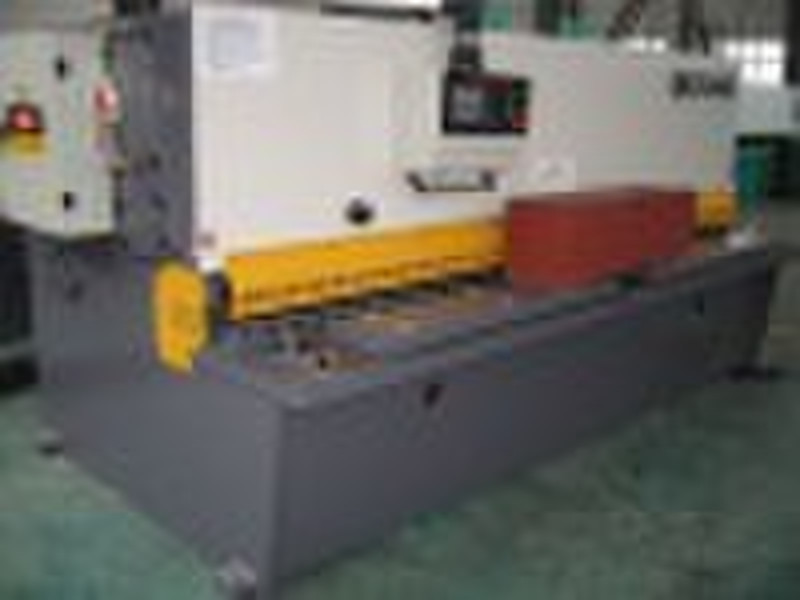

NC series hydraulic shearing machine

Main parameters Shearing thickness: 10mm Shearing width: 3200mm Shearing angle:1°30′ Throat depth: 100mm Stroke: 10 n/min Back gauge range: 20-650mm Worktable height: 800mm Main motor:15 Weight: 8000kg Dimension: 3290mmx1850mmx1730mm(LXWXH) Character --Whole-welded structure, vibration to eliminate stress, good rigidity and stability. --Advance hydraulic system(American OMG valves), its operation is stable and reliable; --Sealings are from Japan NOK with good sealing. --Seamless compression fittings to avoid oil leakage. --It possess two working ways: Semi-automatic and automatic. --Adjusting the blade clearance by dial, it is rapid, accurate and convenient. --The top blade takes the eccentric bush as fulcrum, it accomplish cutting function through reciprocating motion driven by left and right oil cylinder. --Main electrical elements are Siemens. --Buttons are Schneider. --It has material holding and receiving device on pneumatic section, which makes it easy for sheet plate processing. --Control system: E200 control system which special for shearing machine is from Nanjing Estun. Back gauge (X axis) is controlled by computer, it adopts servo motor, ball screw and liner guide rail to ensure repeat position precision.
