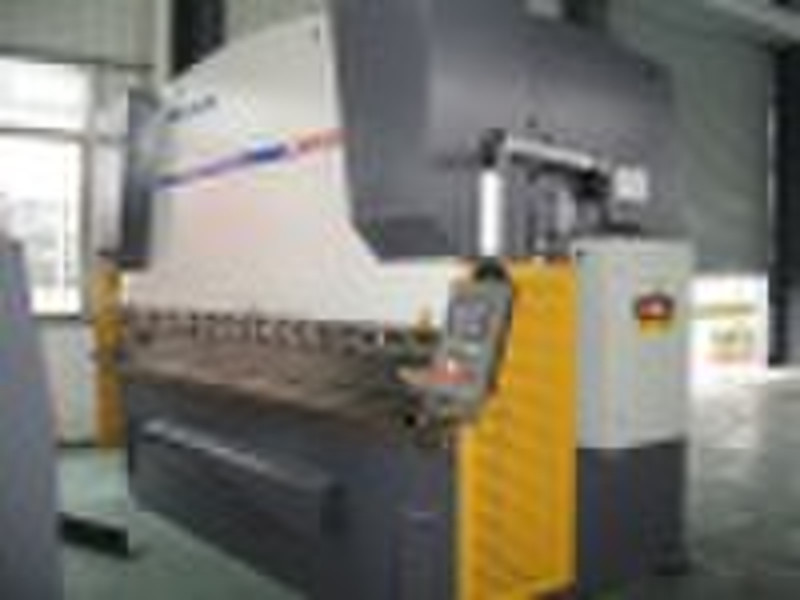

CNC HPB series electro-hydraulic synchro press bra

Main parameters Nominal pressure: 4000KN Worktable length: 4000mm Distance between uprights: 3200mm Stroke: 200mm Main motor power: 30kw Oil pump: 32 Mpa Over dimension: 4200mmx2300mmx3380mm(LxWxH) Character --Beautiful appearance. European design standard and manufacturing process. --The vertical cloumns, top slide and lower worktable are bored integrally to ensure machining precision. --Time delay function with bottom stop to ensure workpiece precision. --Large stroke with the slide, high parallelism tolerance on both sides. --The angle accuracy up to ±30′. --Steel-welded structure, vibration to relieve stress, high strength and good rigidity. --The stopper driven and controlled by servo motor, fast, stable, high precision and low noise. --Hydraulic top-drive, steadiness and reliable. --Mechanical stop and steel torsion bar to maintain synchronization and high precision. --Electric control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of sliding block, and fitted with digital display device, easy and quick in use. --Deflection compensation unit on worktable ensure bending accuracy. Electrical control system --Main electrical elements are from aboard and complies with international standard. They are safe and reliable, long life, and with good anti-interference ability. The electrical cabinet has heat dissipation function. --Portable pedal switch with emergency power off function
